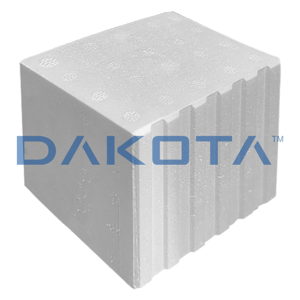

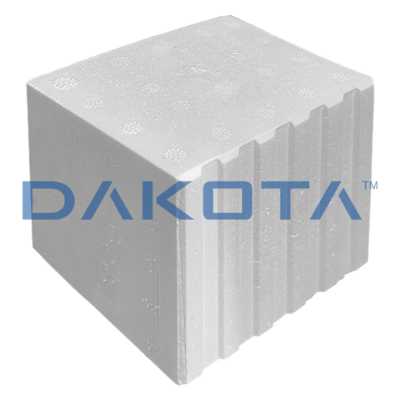

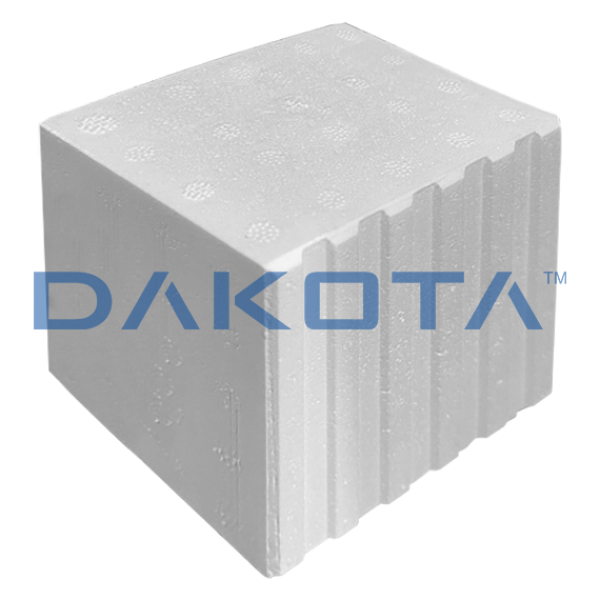

Square Pressure Pad for Insulation Fastening DK-FIX?noresize

1 /

Product Description

 close-icon minus-icon

Support panel dimensions 98 x 98 mm and thickness 60, 80, 100, 120, 140, 160 and 180 mm (dimensions of the usable area is 80 x 80 mm). Packaged in boxes.

Materials used

 close-icon minus-icon

Support panel made of high density EPS (polystyrene).

Use

 close-icon minus-icon

Utilized for the insertion of elements of medium load.

Articles

minus-icon
Product Code/Name Download Dimension Article Info
DK-FIX Square Enlarge search-icon
ZIN35-1756/6

DK-FIX Square

close-icon
TD 		60 x 98 x 98 mm
DK-FIX Square Enlarge search-icon
ZIN35-1756/8

DK-FIX Square

close-icon
TD 		80 x 98 x 98 mm
DK-FIX Square Enlarge search-icon
ZIN35-1756/10

DK-FIX Square

close-icon
TD 		100 x 98 x 98 mm
DK-FIX Square Enlarge search-icon
ZIN35-1756/12

DK-FIX Square

close-icon
TD 		120 x 98 x 98 mm
DK-FIX Square Enlarge search-icon
ZIN35-1756/14

DK-FIX Square

close-icon
TD 		140 x 98 x 98 mm
DK-FIX Square Enlarge search-icon
ZIN35-1756/16

DK-FIX Square

close-icon
TD 		160 x 98 x 98 mm
DK-FIX Square Enlarge search-icon
ZIN35-1756/18

DK-FIX Square

close-icon
TD 		180 x 98 x 98 mm

Download Legends

TD

TD

Technical Datasheet
