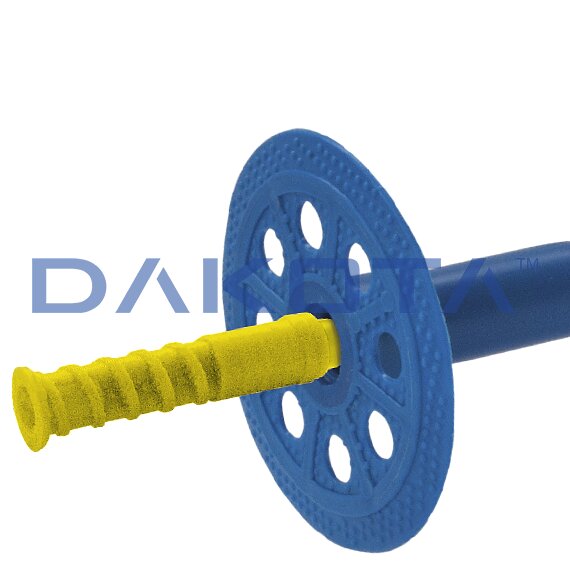

Plastic Insulation Anchor with Screw-in Steel Nail "SGR-AV"

Home

Catalogue

Building

Anchors sgr for insulation system

Tassello sgr av

1 /

Hammering anchor hole 8 mm, with pre-assembled nail into the anchor’s body.

Dimension of the head 60 mm with improved adherence and torx-ready coloured plastic nail cap.

It complies to EAD 330196-01-0604.

Main features of this product:

• Pre-assembled nail, for a faster installation.

• Variable section of the anchor’s body (fixing diameter 8 mm).

• Asymmetric expansion of the anchor’s body.

• Customizable anchor’s head.

• Packed in box of 100 pcs. each.

Body and head made of PP (polypropylene), screw made of steel and nail cap in polyamide (PA).

Used for the mechanical anchoring of insulating panels, mineral wool and for the main types of masonry, supporting its load and tensile stress.

The pre-assembled nail facilitates and accelerates the installation of the anchor.

Product	Code/Name	Download	Dimension
Enlarge	TER11-3110AV Anchor SGR-AV - 110 mm	TD DOP	110 mm
Enlarge	TER11-3130AV Anchor SGR-AV - 130 mm	TD DOP	130 mm
Enlarge	TER11-3150AV Anchor SGR-AV - 150 mm	TD DOP	150 mm
Enlarge	TER11-3170AV Anchor SGR-AV - 170 mm	TD DOP	170 mm
Enlarge	TER11-3190AV Anchor SGR-AV - 190 mm	TD DOP	190 mm
Enlarge	TER11-3210AV Anchor SGR-AV - 210 mm	TD DOP	210 mm
Enlarge	TER11-3230AV Anchor SGR-AV - 230 mm	TD DOP	230 mm
Enlarge	TER11-3250AV Anchor SGR-AV - 250 mm	TD DOP	250 mm
Enlarge	TER11-3270AV Anchor SGR-AV - 270 MM	TD DOP	270 mm
Enlarge	TER11-3290AV Anchor SGR-AV - 290 MM	TD DOP	290 mm
Enlarge	TER11-3310AV Anchor SGR-AV - 310 MM	TD DOP	310 mm

TD

Technical Datasheet

DOP

Declaration of performance
