Fire resistant inspection hatch
Alumatic one side ei30 ei60 ei90
Fire Rated Access Panel

1 /

Product Description

 close-icon minus-icon

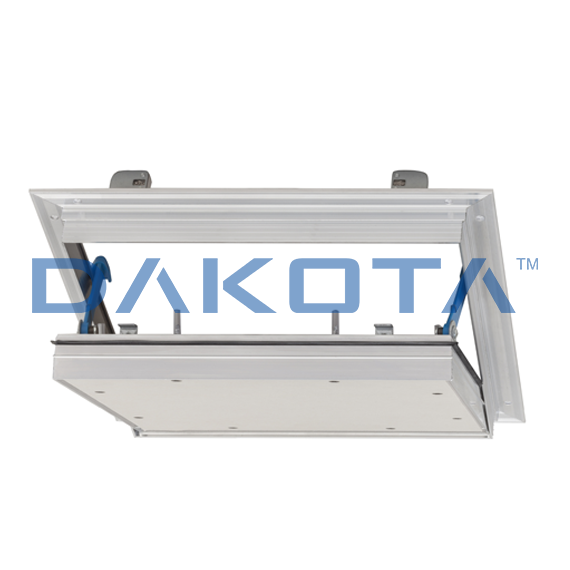

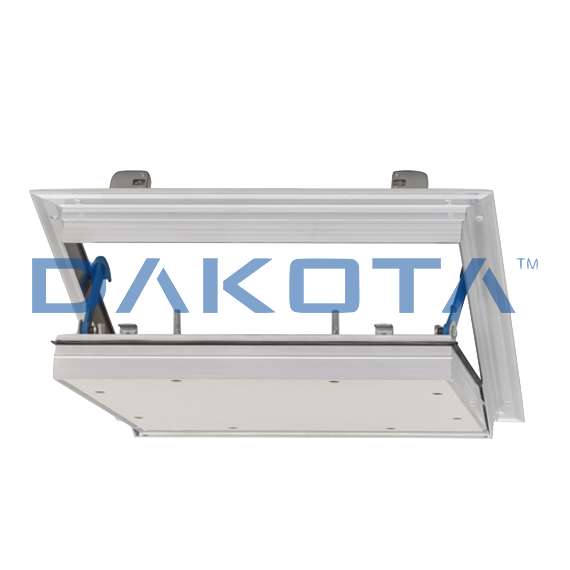

The Alumatic One Side inspection hatch is especially designed for use in self-supporting fireproof ceilings and tested EI60/ EI90 (depending on model) for flame resistance on the room side. It prevents for 60 (EI60) or 90 minutes (EI90) the propagation of flame from the room side to the upper side of the hatch. The aluminium frame profile is equipped with an intumescent band. The hatch cover is fitted with two DF fireproof plasterboard sheets and a lip seal to prevent the passage of smoke. Two safety catches of fireproof plastic, which allow the door to be retained when opened, complete the equipment. The hatch is easily removable from the frame and allows for quick repositioning. Individually packaged in a box.

Materials used

 close-icon minus-icon

Aluminum frame with intumescent coating and fire resistant plasterboard panel.

Use

 close-icon minus-icon

Used in self-contained ceilings with fire protection EI30, EI60 and EI90 (E = aptitude not to allow or produce flames, vapours or hot gases on the unexposed side; I = aptitude to reduce heat transmission). Quick and easy installation solution for fire tested ceilings on the room side with smoke seal around the entire sash perimeter. Does not require additional protective panels on the top side

Articles

minus-icon
Product Code/Name Download Dimension Article Info
Alumatic EI60 One Side 300 x 300 Enlarge search-icon
GAN01-6560

Alumatic EI60 One Side 300 x 300

close-icon
TD 		300 x 300
Alumatic EI60 One Side 400 x 400 Enlarge search-icon
GAN01-6561

Alumatic EI60 One Side 400 x 400

close-icon
TD 		400 x 400
Alumatic EI60 One Side 500 x 500 Enlarge search-icon
GAN01-6562

Alumatic EI60 One Side 500 x 500

close-icon
TD 		500 x 500
Alumatic EI60 One Side 600 x 600 Enlarge search-icon
GAN01-6563

Alumatic EI60 One Side 600 x 600

close-icon
TD 		600 x 600
Alumatic EI90 One Side 300 x 300 Enlarge search-icon
GAN01-6568

Alumatic EI90 One Side 300 x 300

close-icon
TD 		300 x 300
Alumatic EI90 One Side 400 x 400 Enlarge search-icon
GAN01-6569

Alumatic EI90 One Side 400 x 400

close-icon
TD 		400 x 400
Alumatic EI90 One Side 500 x 500 Enlarge search-icon
GAN01-6570

Alumatic EI90 One Side 500 x 500

close-icon
TD 		500 x 500
Alumatic EI90 One Side 600 x 600 Enlarge search-icon
GAN01-6571

Alumatic EI90 One Side 600 x 600

close-icon
TD 		600 x 600

Download Legends

TD

TD

Technical Datasheet
