Product Description

 close-icon minus-icon

The LOW THICKNESS FIXING KIT FOR STRUCTURAL REINFORCEMENT is a fastening system used in systems for securing concrete slabs. The lowered geometry of the washer (5 mm) allows its application even when low thickness finishing layers are foreseen.

Materials used

 close-icon minus-icon

Disc (Ø 68 mm complete with plug) and plug made of nylon PA6 and galvanized steel screw

Use

 close-icon minus-icon

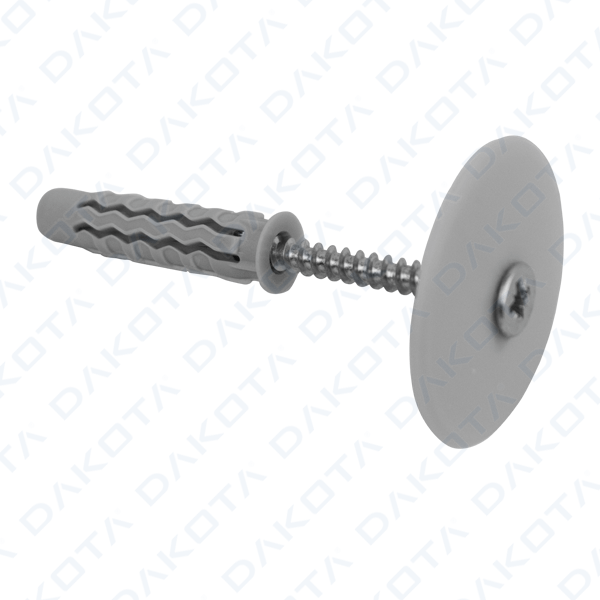

The LOW THICKNESS FIXING KIT FOR STRUCTURAL REINFORCEMENT consists of a Ø 50 mm PA6 disc with a thickness of 5 mm, a galvanised steel screw with countersunk head and cross cut, and a four-sector nylon PA6 plug. The system is used to fasten Dakota TITANET type fibreglass nets to the floor slab for securing against piñata bursting or for its restoration. The intervention can be completed by applying finishing layers such as plaster or plasterboard or it can be left exposed.

The LOW THICKNESS FIXING KIT FOR STRUCTURAL REINFORCEMENT can also be used to fix the mesh to the brickwork in anti-liftoff interventions on curtain walls and partitions.

Articles

minus-icon
Product Code/Name Download Dimension Article Info
Low thickness fixing kit for structural reinforcement Enlarge search-icon
TER14-5606

Low thickness fixing kit for structural reinforcement

6 x 60 - Ø 50 mm
Low thickness fixing kit for structural reinforcement Enlarge search-icon
TER14-5607

Low thickness fixing kit for structural reinforcement

6 x 70 - Ø 50 mm
Low thickness fixing kit for structural reinforcement Enlarge search-icon
TER14-5608

Low thickness fixing kit for structural reinforcement

6 x 80 - Ø 50 mm
Low thickness fixing kit for structural reinforcement Enlarge search-icon
TER14-5609

Low thickness fixing kit for structural reinforcement

6 x 90 - Ø 50 mm
