Product Description

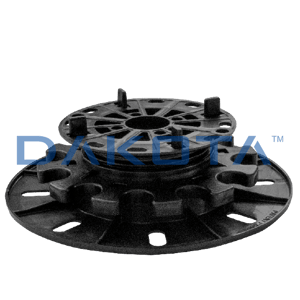

Paving pedestal that are adjustable supports for outdoor raised floors, for heights from 35 to 60mm (without the optional extensions)

Arkimede guarantees an high mechanical resistance and a very easy and quick installation.

The support is composed by a fixed-head with a 4 removable tabs for different joint thickness.

Available versions:

• Pack consisting of base, rotary ring and 4 removable head tabs, with 2 mm thickness.

• Pack consisting of base, rotary ring and 4 removable head tabs, with 4 mm thickness.

Suitable for many applications, with 2 CODES only, (Support + 1 size extension), it is possible to easily achieve all desired heights!

With 2 codes only, 2 boxes can make any desired size while saving a lot of stocking space in your warehouse!

For example: for a desired height of 250 mm, only the base product is needed (ranging from 35 to 60 mm) and 4 extensions of 50 mm. 2 Codes, 2 Boxes = savings guaranteed!

The base is 314 cm2.

The diameter of the head is 120 mm with a support surface of 113 cm2.

Floating and raised floor supports

Please refer to the list of compatible accessories to discover all Dakota solutions!

Materials used

Use in exterior areas, terraces and elevated floors. Produced with water draining systems to prevent mold deposits.

Use

Made of PP (polypropylene).

Articles

Product	Code/Name	Download	Dimension	Article Info
Enlarge	TER09-1143/4A4M ARKIMEDE 35 Paving - 4 mm joint	TD	da 35 a 60 - spess. 4mm
Enlarge	TER09-1143/4A2M ARKIMEDE 35 Paving - 2 mm joint	TD	da 35 a 60 - spess. 2mm
