Product Description

 close-icon minus-icon

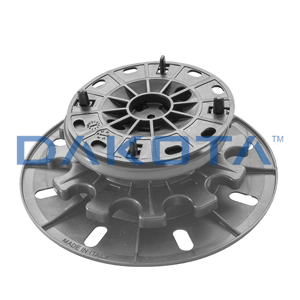

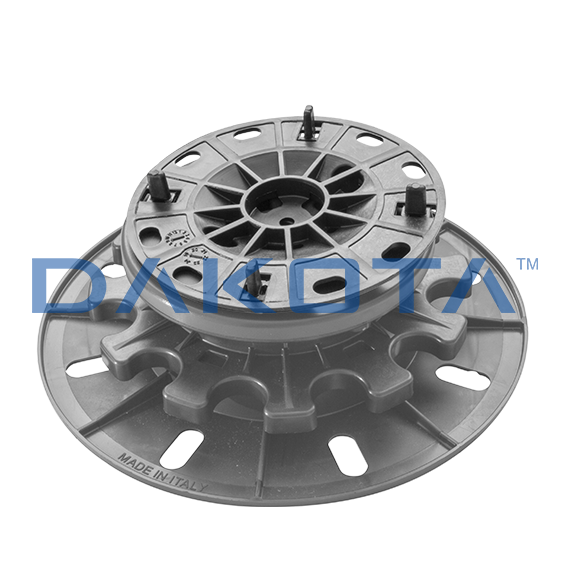

Arkimede 41 Self-levelling Paving is the perfect solution for outdoor raised floors.

This product combines the flexibility and ease of use of the Arkimede line (with fixed head) with the advantage of an integrated self-levelling head (for slopes from 0 to 5%).

It is adjustable in height from 41 to 66 mm (excluding 25, 50 and 100 mm extensions) and can be combined with all Arkimede 35 accessories.

Not compatible with ARKIMEDE 10.

Materials used

 close-icon minus-icon

Made of PP (polypropylene).

Use

 close-icon minus-icon

Use in outdoor areas, terraces, shared flooring.

Thanks to the pre-cut, the spacer fins can be easily removed for T-use, linear use or to have the head completely flat (e.g. laying in the centre of the tile).

Articles

minus-icon
Product Code/Name Download Dimension Article Info
Self-leveling - Head Paving for ARKIMEDE - 4 wings for 2 mm joint Enlarge search-icon
TER09-1142TB2

Self-leveling - Head Paving for ARKIMEDE - 4 wings for 2 mm joint

close-icon
TD 		ø 120 - spessore 2 mm
Self-leveling - Head Paving for ARKIMEDE - 4 wings for 4 mm joint Enlarge search-icon
TER09-1142TB4

Self-leveling - Head Paving for ARKIMEDE - 4 wings for 4 mm joint

close-icon
TD 		ø 120 - spessore 4 mm

Download Legends

TD

TD

Technical Datasheet
