Product Description

 close-icon minus-icon

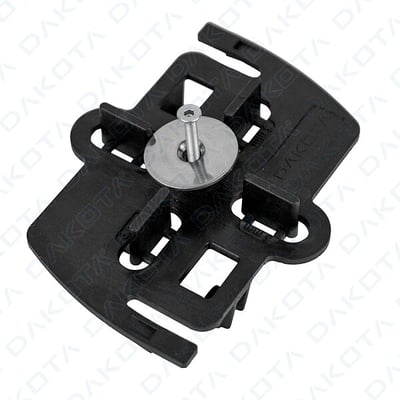

Dakota’s windproof kit is composed of one cross clip (joint of 3 or 4mm with breackable tabs) that fits perfectly to the Keradeck® joist, one screw (h.20 or 30 mm) and one washer to block the flooring tiles.

The system is studied to connect all the tiles of the flooring in one solid surface (since they are linked to one other ones) to the Keradeck® joist and then to the Arkimede® supports.

Once all the tiles are connected together, the improved weight of the floor surface reduces the strength of wind underlying, giving an increased resistance to the whole system.

This product is available for Arkimede ® supports* only and it has to be installed uniquely with Keradeck ® joist and bajonetta adapter.

With this product external tile with thickness 20mm only can be used and they can be fixed in 2 ways:

Hidden fixing mode: the washer has to be placed on a hollow on the side of the tile, previously cutted. In this case has to be used the models with h.20mm screw.

At sight fixing mode: the washer has to placed on the top of the tiles. In this case has to be used the models with h.30mm screw.

*does not match with Arkimede 10

Materials used

 close-icon minus-icon

Made of PA (Polyammide).

Use

 close-icon minus-icon

Used for the perimeter finishing in the absence of a lateral wall, in the installation of raised floors with ARKIMEDE™ supports.

The adjustble clips allow the fixing of tiles of different thickness, from 8 to 38 mm, in a very easy and simple way.

Plate and Lateral Clip fit with Head for Tile (2 or 4 mm) and work with ARKIMEDE™ 35, 41, 60 and 115 paving only.

Articles

minus-icon
Product Code/Name Download Dimension Article Info
Windproof kit for Arkimede™ - 3 mm joint for tiles h.20mm - fixing at sight Enlarge search-icon
TER09-2299/W3H20

Windproof kit for Arkimede™ - 3 mm joint for tiles h.20mm - fixing at sight

close-icon
TD 		3 mm
Windproof kit for Arkimede™ - 3 mm joint for tiles h.20mm - hidden fixing Enlarge search-icon
TER09-2299/W3L20

Windproof kit for Arkimede™ - 3 mm joint for tiles h.20mm - hidden fixing

close-icon
TD 		3 mm
Windproof kit for Arkimede™ - 4 mm joint for tiles h.20mm - fixing at sight Enlarge search-icon
TER09-2299/W4H20

Windproof kit for Arkimede™ - 4 mm joint for tiles h.20mm - fixing at sight

close-icon
TD 		4 mm
Windproof kit for Arkimede™ - 4 mm joint for tiles h.20mm - hidden fixing Enlarge search-icon
TER09-2299/W4L20

Windproof kit for Arkimede™ - 4 mm joint for tiles h.20mm - hidden fixing

close-icon
TD 		4 mm

Download Legends

TD

TD

Technical Datasheet
