Fiberglass Thermal Insulation Mesh

1 /

Product Description

 close-icon minus-icon

Orange color fiberglass mesh (identification code. R131 corresponding to net weight per square meter of fiberglass mesh without resin). Dimensions available: 1,10x50 and 1,00x50 meters. Packed in cellophane rolls.

Materials used

 close-icon minus-icon

Made of Adfors Saint-Gobain type E glass fiber, impregnated with SBR anti-alkaline resins, complying with EAD 040016-01-0404 standard certified by leading European Institutes, accompanied by ITC CNR Quality Mark, spacing 3.5 x 3.8 mm and weight of 160 (±10%) gr/m2

Use

 close-icon minus-icon

Used in thermal insulating systems, ETICS as armor for the smoothing layer in order to absorb and evenly distribute the mechanical stresses to which the system could be subjected.

Articles

minus-icon
Product Code/Name Download Dimension Article Info
Orange fiber glass mesh for wall insulation Enlarge search-icon
RET01-1170

Orange fiber glass mesh for wall insulation

1,10 x 50 m

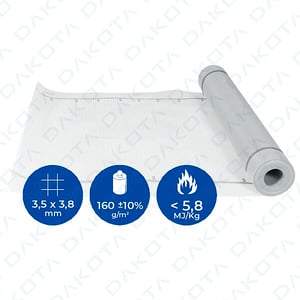

White fiber glass mesh for wall insulation Enlarge search-icon
RET01-1171

White fiber glass mesh for wall insulation

1,10 x 50 m
White fiber glass mesh for wall insulation Enlarge search-icon
RET01-1171N10

White fiber glass mesh for wall insulation

1,00 x 50 m

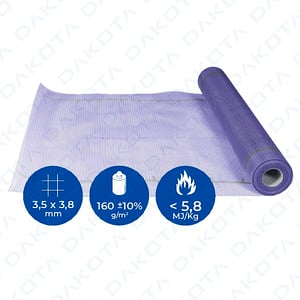

Blue fiber glass mesh for wall insulation Enlarge search-icon
RET01-1172

Blue fiber glass mesh for wall insulation

1,10 x 50 m
Blue fiber glass mesh for wall insulation Enlarge search-icon
RET01-1172B10

Blue fiber glass mesh for wall insulation

1,00 x 50 m
